Multifunctional Demolition Robot

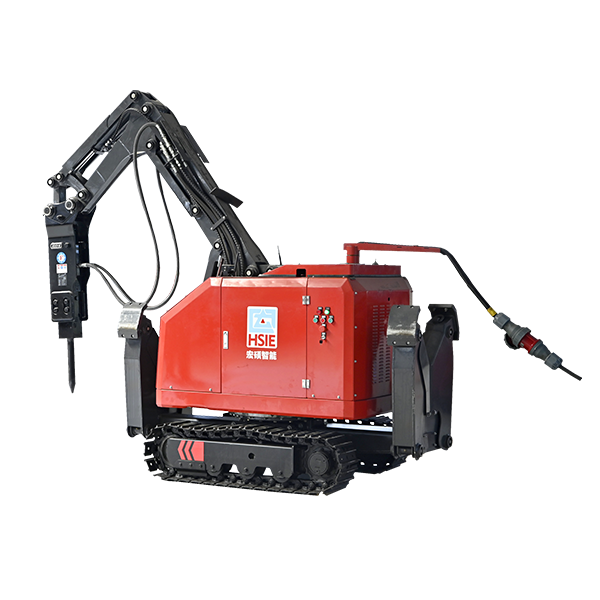

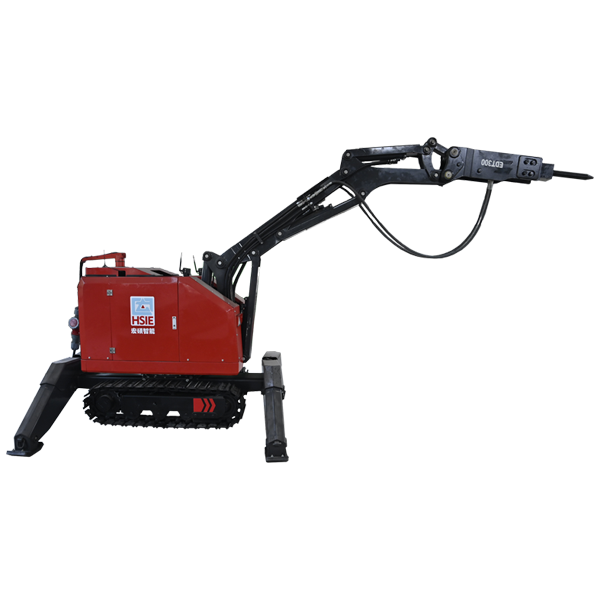

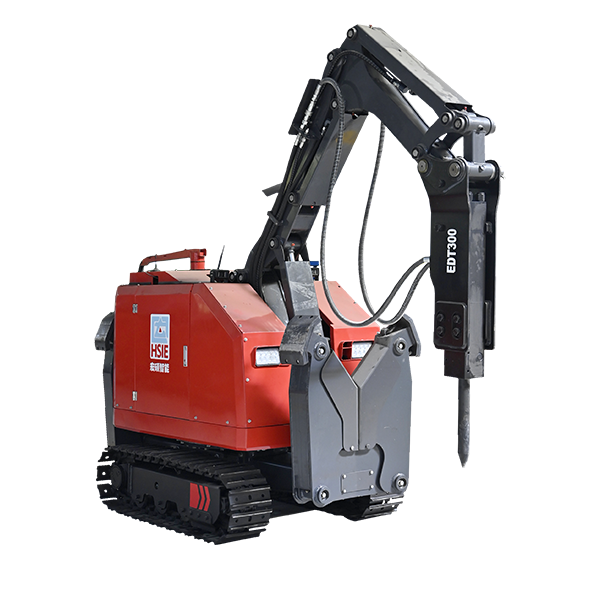

PC 300 Multifunctional Demolition Robot

Flexible intelligent control of the working arm, which can achieve precise fixed-point breaking, grasping and handling and other fine operatios. Remote control combined with video surveillance, wireless control distance of equipment up to 2km. Integration of robot technology and multidisciplinary integration can realize the expansion of functions such as environ ment awareness and path planning.

Get Instant Quote PDF Download

ENERGY SAVING AND ENVIRONMENTAL
PROTECTION

1. Two power sources for customers to choose, motor drive no noise, diesel engine drive, flexible low emission hydraulic drive.
2. Quiet removal, small impact on the surrounding environment.
3. Green design concept with advanced hydraulic control technology, the system has high energy efficiency and low heat.

High Efficiency Response

Small body, compact structure, flexible, suitable for small confined space operation.

Suitable for high temperature, high dust, strong magnetic and other harsh environment construction operations.

One machine can be equipped with hydraulic hammer, hydraulic scissors and other tool heads can also be equipped construction costs.with hydraulic wrists of freedom, so that the operation is more flexible.

Contatc Us

High Efficiency

The car is small and powerful, the tool head is powerful, and the breaking capacity is more than 3 times that of the same weight construction machinery.

Three-section arm humanoid hand design, large operation range, flexible action, no dead Angle.

Core components imported to ensure excellent quality.

Contatc Us

Safe and reliable

Man-machine separation, equipment can replace people into thedangerous area operation, reduce personnel injury low center of gravity design.
Front and rear hydraulic legs, stable and reliable work,high protection of core components.
Professional customization to meet different application fields.

Mining industry application

Demolition robots have a variety of uses in under-ground mines, especially in metal mines with narrow laneways, which can be used to break large blocks, lift hair,roadway support, secondary crushing, drilling anchor holes and blasting holes, cutting anchor cables, digging ditches,repairing slopes and repairing deformed laneways, in addition, it can be used as a fixed crushing station next to the pass screen, and can also be used as ore mining and raking in narrow veins.

Cement industry application

Demolition robot can complete the tasks of cleaning.maintenance and inspection in the cement kiln under high temperature and high dust environment, can replace manual and small excavation maintenance rotary kiln,greatly shorten the kiln shutdown time, three-section arm structure, no dead Angle can be hit, side and down, easy to remove Yao building materials and silmo bricks, bringing new directions for the rotary kiln maintenance process. Inaddition, the demolition robot can also be used to clean the clinker warehouse, grate cooler and preheating tower.In addition to cement kilns, it is also widely used in pelleting kilns, lime kilns and other rotary kilns. Man-machine sepa- ration and remote control operation ensure construction safety, improve construction efficiency and reduce construction costs.

Metallurgical industry application

Due to its flexibility, high temperature dust resistance,high reliability and high cost performance, the damolition robot is widely used in the iron and steel metallurgy industry to dismantle ladle, hot demolition furnace, hot cleaning mouth, hot cleaning ladle edge, iron ditch,VOD furnace cover and torpedo tank. In the foundry, it can be used for unpacking, cleaning sand mold and end cover, cleaning medium frequency fumace slag and lining. In the casting industry, it is used to disassemble hot metal ladle, ramming furnace, cleaning end cover, cleaning sand mold casting and pouring basin; In the ferroalloy industry, it is used in the stripping furnace and the stripping of ferroalloy plant. In copper, lead and zinc smelting industry, it is applied to demolish the furnace, clean the converter mouth, clean the bottom blow out slag mouth, clear the side blow furnace air eye, clean the bottom blow furnace feed mouth, flue and chute, etc. in the electrolytic aluminum industry, it is used to clean the aluminum package, clean the anode and online grooves, dig and hold the furnace, and clean the residual electrolyte.

Tunnel use

Demolition robot is widely used in tunnel construction,and it is an ideal equipment for excavation, maintenance and transformation of connecting channel. It is often used for the removal of temporary wall of underground tunnel, tunneling, shaft excavation, auxiliary support of roadway,drainage and opening control of cable tunnel. It is widely used in the construction of tunnel step method and freezing method, and is suitable for mechanical excavation of rocks with different hardness.

Building use

The robot has multiple uses in the field of building demolition, including the demolition of reinforced concrete beams and columns, the descending floor of buildings, indoor renovation and other scenes. Compared with traditional concrete cutting saws, pickaxes, excavators and other demolition equipment, demolition robots have low noise and vibration, have less impact on the surrounding environment, reduce construction costs, and provide construction efficiency and safety.

Tech Specs.

Item argument		argument
Overall dimensions	Length (transport, short arm folded down)	2488mm
	Overall width	1080mm
	Full height	1685mm
Maximum operating height		4810mm
Maximum operating distance		4750mm
Turning speed		tunable
Maximum travel speed		tunable
Hydraulic tank capacity		70L
Pump type		Load sensitive axial piston variable pump
System operating pressure		22MPa
Output flow of the pump		66L/min
Motor power		22KW
Starting device		Soft boot/direct boot
Control type		Intelligent remote control
Signal		Digital signal
Control mode		wireless
Control range		100-150m
Machine weight		2300KG
Recommended accessory weight		250kg
Tool option	Digging bucket, hydraulic shear and other working equipment
	Steel track
	Quick-change device
